RF Cellular Repeater

• GSM Series: UNRG3 (GSM 850MHz) | UNRG6 (GSM 900MHz) | UNRG8 (GSM 1800MHz) | UNRG9 (GSM 1900MHz)
• CDMA Series:  UNRC1 (CDMA 450MHz) | UNRC3 (CDMA 800MHz) | UNRC9 (CDMA 1900MHz)
• WCDMA:  UNRW5 (WCDMA 2100MHz) | UNRW3 (WCDMA 850MHz) | UNRW9 (WCDMA 1900MHz)
• LTE:  UNRL2 (LTE 700MHz) | UNRL8 (LTE 1800MHz) | UNRL9 (LTE 1900MHz) | UNRL7 (LTE 2600MHz)
• IDEN:  UNRI3 (IDEN 800MHZ)

RF Cellular Repeater system is designed to solve problems of weak mobile cellular signal, which is much cheaper than adding a new Base Station (BTS). Main operation of RF Repeaters system is to receive low-power cellular signal from BTS via radio frequency (RF) transmission and then transmit the amplified signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and transmitted to the BTS via the opposite direction.

According to your requirement for working frequency, you can choose either type of RF Repeaters:

• Band Selective RF Repeaters System: to amplify all signals in the whole band (Various bandwidth is available upon request)
• Wireless Channelized RF Repeaters System: to amplify only the signals transmitted by the customized 1 or 2 or 4 or 6 or 8 channel (A narrow band with customized central frequency)

• Aluminum-alloy casing with IP65 protection and compact design, cool system without fan
• In-built AGC & ALC function be able to ensure easy installation without setting
• Unique max AGC60dB firmware to ensure stable operating on moving platforms such as ship or trains
• Compact size and light weight, easy to install on wall or pole
• High working gain as Min. 90dB
• Output power +30dBm - +43dBm for large coverage application
• Filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
• Built-in wireless modem (Option) for remote monitoring by SMS
• Details repeater parameters and status can be monitored by software
• High gain linear power amplifier technique with reliable performance

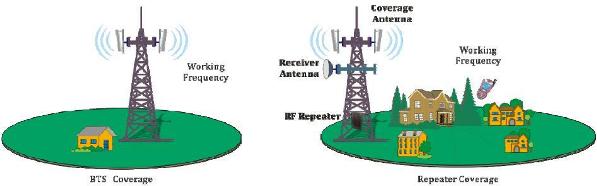

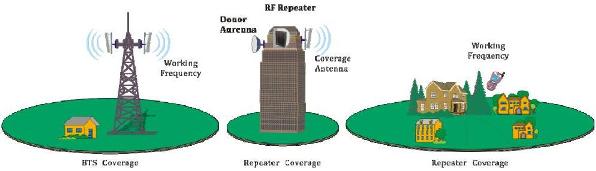

• Outdoor/Rural: Airports, Tourism Regions, Golf Courses, Tunnels, Factories, Mining Districts, Villages etc.

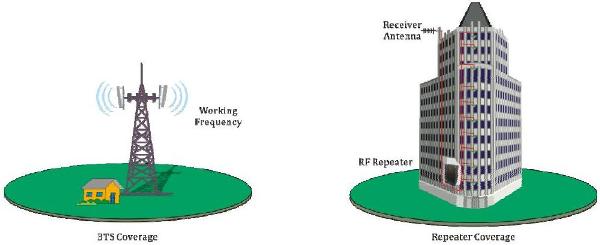

• Indoor: Hotels, Exhibition Centers, Basements, Shopping Malls, Offices, Packing Lots etc

• The repeater can find an installation place which can receive pure BTS signal at strong enough level as the Rx Level in repeater site should be more than -70dBm;
• And can meet the requirement of antenna isolation to avoid self-oscillation.
