690-960M/1710-2690M Tri Sector RET (Remote Electrical Tilt) Base Station Antenna

There are 12 ports, 18 ports or more ports Tri Sector RET (Remote Electrical Tilt) Base Station Antenna available. This is a high performance antenna works with GSM, CDMA, LTE, 3G, 4G, 5G cellular system. Customization for different gain and ports is acceptable.

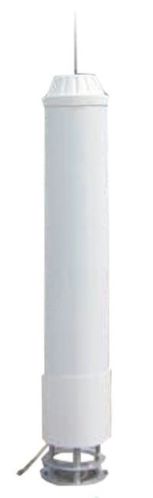

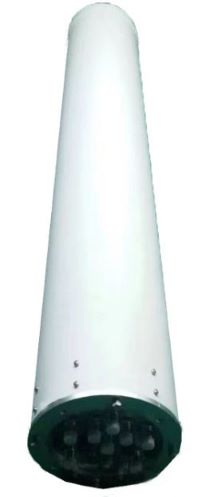

12 Ports Tri Sector RET (Remote Electrical Tilt) Base Station Antenna 18 Ports Tri Sector RET (Remote Electrical Tilt) Base Station Antenna
UNTS6927-65-15/17 UNTS6927-65-15/17/17

Specification

Specification for 690-960M/1710-2690M Tri Sector RET (Remote Electrical Tilt) Base Station Antenna

Model UN6927-65-15/17 UN6927-65-15/17/17
Working Frequency 690-960M/1710-2690M
Gain 15±1dBi/17±1dBi 15±1dBi/17±1dBi//17±1dBi
RCU Interface AISG Version2.0
RET Type Integrated RET
Horizontal Beam Width 65±8°
Vertical Beam Width 15±2°
IM3 (2x43dBm) ≤-153dBc
Front-to-Back Ratio ≥23dB
0° Cross Polarization Ratio ≥15dB
±60° Cross Polarization Ratio ≥8dB
Electrical downtilt 0°-10°
Isolation: Intrasystem ≥28dB
V.S.W.R. ≤1.5
Input Impedance 50Ω
Polarization ±45º
Max. Power 300W
Connector 12×DIN 7/16 Female or 4×4.3-10 Female 18×DIN 7/16 Female or 4×4.3-10 Female
Mechanical Downtilt 0°-10°
Lightning Protection DC Grounding
Dimensions Φ360mmx2000mm Φ507mmx2000mm
Weight 46kg 58kg
Material of Dome Fiberglass
Wind Survival 60 m/s
