Model: UNPI3 | ||
Description
IDEN Indoor Mobile Signal Booster (pico cellular repeater) is an ideal solution for small/medium businesses and home users looking to enhance indoor 2G or 3G wireless connectivity. It is connected via coaxial cable to Donor Antenna and Service Antenna, Donor Antenna is placed outside the building where it has easy access to BTS signal, and the Service Antenna is placed in the building where it can extend radio coverage to the blind area.
The Band Selective Booster provides band selective functions to satisfy the demanding customers (Various bandwidths are also available). The band selective function, together with the strong out-of-band gain, totally avoids improving the competitors’ signal coverage. And also is with Automatic Gain Control (AGC) to avoid the Booster from over saturation, therefore maintaining a high voice quality and avoid adding interference to network. With good looking & super compact design also make it attractive. Besides, its easy installation feature is also for individual customers to install the booster by themselves, and it does not need much professional knowledge and instrument.
Features
- Designed for indoor applications with low power consumption, compact size and light weight.
- In-built AGC & ALC function be able to ensure easy installation without setting.
- “Plug & Play” – basically no need for configuration and free of maintenance.
- High working gain
- Output power 10dBm and 23dBm for small site indoor coverage.
- Built-in wireless modem (Optional) for remote monitoring by SMS, GPRS or TCP/IP.
Application
- Indoor: Hotels, Home, Basements, Shopping Malls, Offices, Parking Lots, etc.

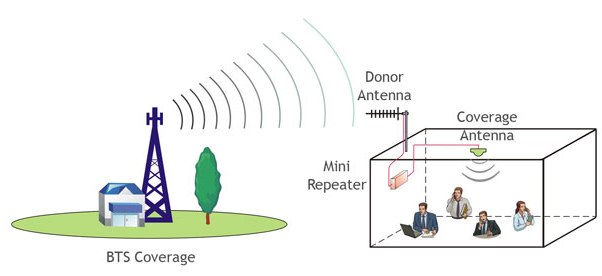

IDEN Mobile Signal Booster Application
Specification
Item | 10dBm | 23dBm | |
---|---|---|---|
Working Frequency (customizable) | Uplink | 806~821MHz | |
Downlink | 851~866MHz | ||
Output Power | 10 dBm (0.01W) | 23 dBm (0.2 W) | |
Gain | ≥ 55dB | ≥ 73dB | |
Automatic Level Control (ALC) Range | 20dB | ||
Automatic Gain Control (AGC) | 15dB | ||
Voltage Standing Wave Ratio (VSWR) | < 1.6 | ||
Noise Figure | ≤ 5dB | ||
In-Band Ripple | ≤ 5dB p-p | ||
System Delay | ≤ 5μSec | ||
I/O Impedance | 50Ω | ||
RF Connector | SMA (Female) | N-Type (Female) | |
Power Supply (customizable) | DC 5V / AC 100~240V | ||
Dimension | 150mm X 120mm X 30mm | 200mm X 120mm X 30mm | |
Weight | 0.7kg | 0.9kg | |
Indication LED | Power supply, alarm, running state | ||
Accessories | Mounting Brackets & Screws, AC/DC Adaptor & User Manual |
